West End Street Railway Co. Track Plans 1892 Plate 17
Publisher: West End Street Railway Co.
Size: 30" wide x 18" high
Source Collection: Leo Sullivan
Collection: West End Street Railway Co. Track Plans 1892
Boston in Transit - The Book

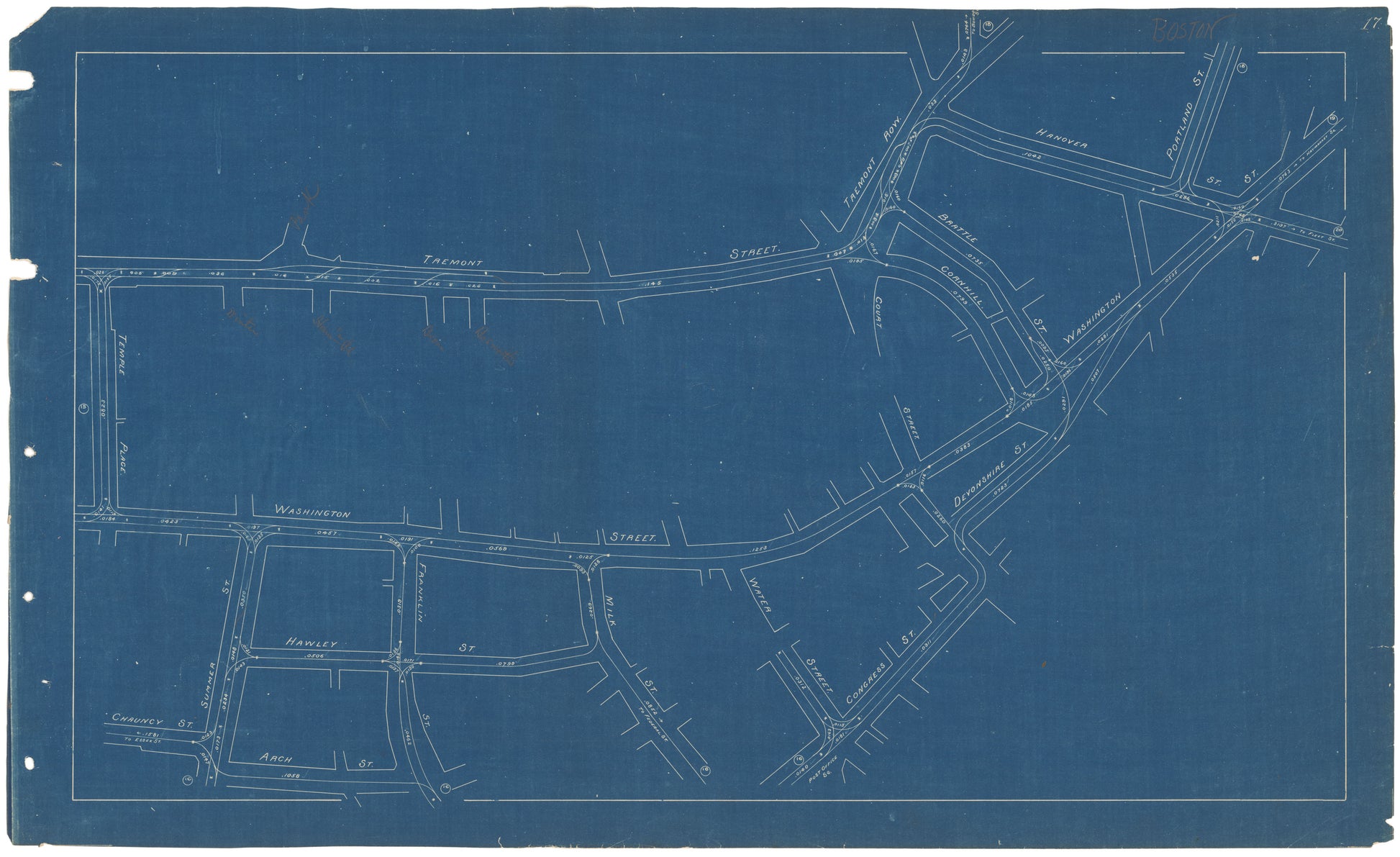

Figure 2.47 - West End Track Plan Sheet Number 17, 1892
Streetcar tracks, each represented by a single white line, wind around Scollay and Adams Squares (right). The tracks trace Tremont and Washington Streets and what today is Downtown Crossing (left). Street names are marked and lengths of track sections are noted in increments of a mile.
