South Station Basement Plan, Boston, Massachusetts Circa 1900
Date: Circa 1900
Publisher: Boston Terminal Co.
Source Collection: WardMaps LLC
Boston in Transit - The Book

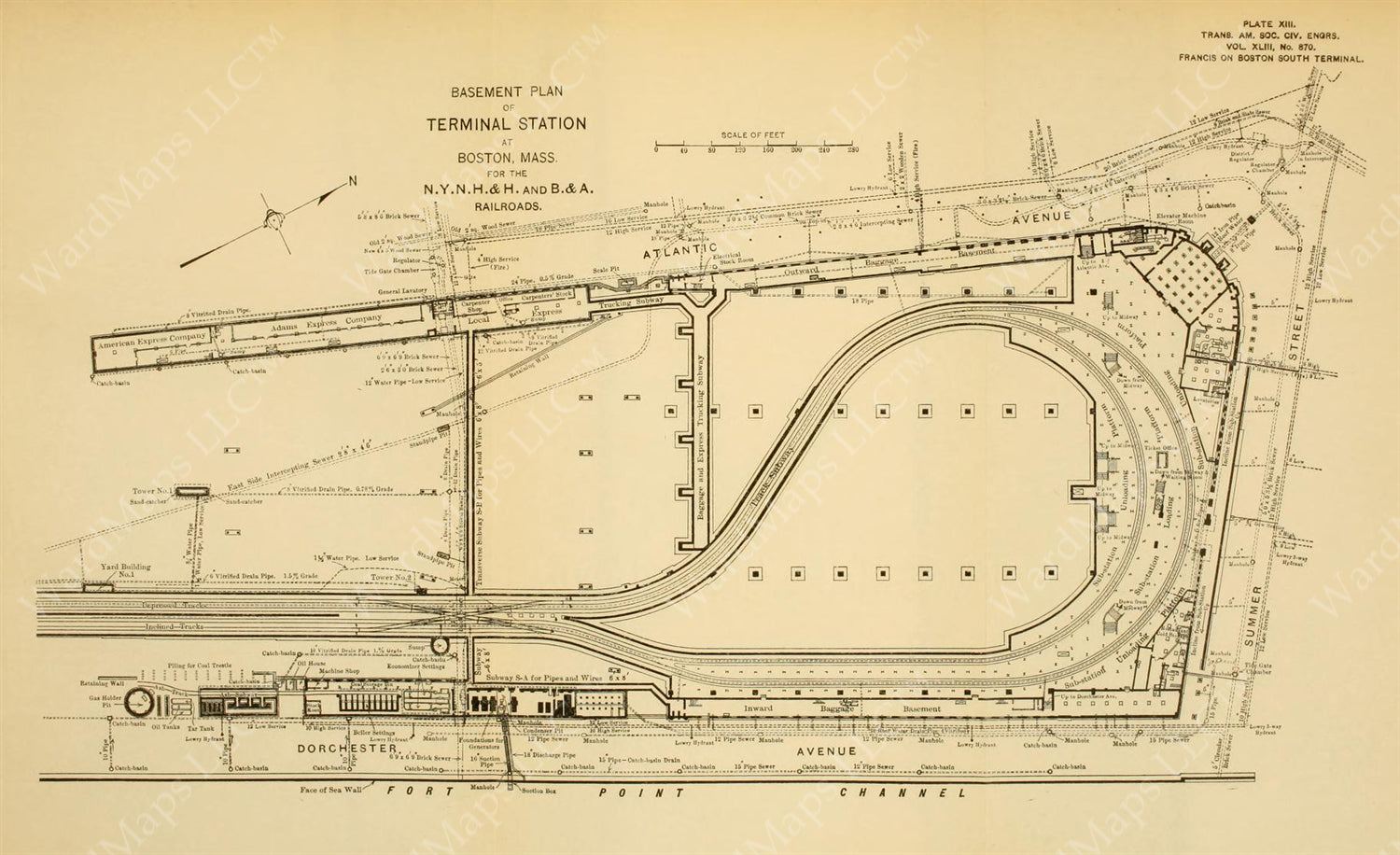

Figure 4.104 - Basement Plan of South Station, Circa 1900
Basement spaces for the express companies and outward baggage areas line the Atlantic Avenue side of the terminal (top). Sub-grade spaces for the terminal’s power plant and inward baggage department are arranged along Dorchester Avenue (bottom). The centerpiece of the lower level is a massive platform intended for run-through commuter trains (right). The subterranean platform is served by a pair of tracks that loop from and back to a four-track incline (left). The suburban platform is served by pedestrian ramps that ascend up to Summer Street (right). The suburban platform never saw regular service and has been lost to multiple renovations and demolitions on the site.
