Order of Stations Sign Fabrication Drawing 1951
Source Collection: WardMaps LLC
Boston in Transit - The Book

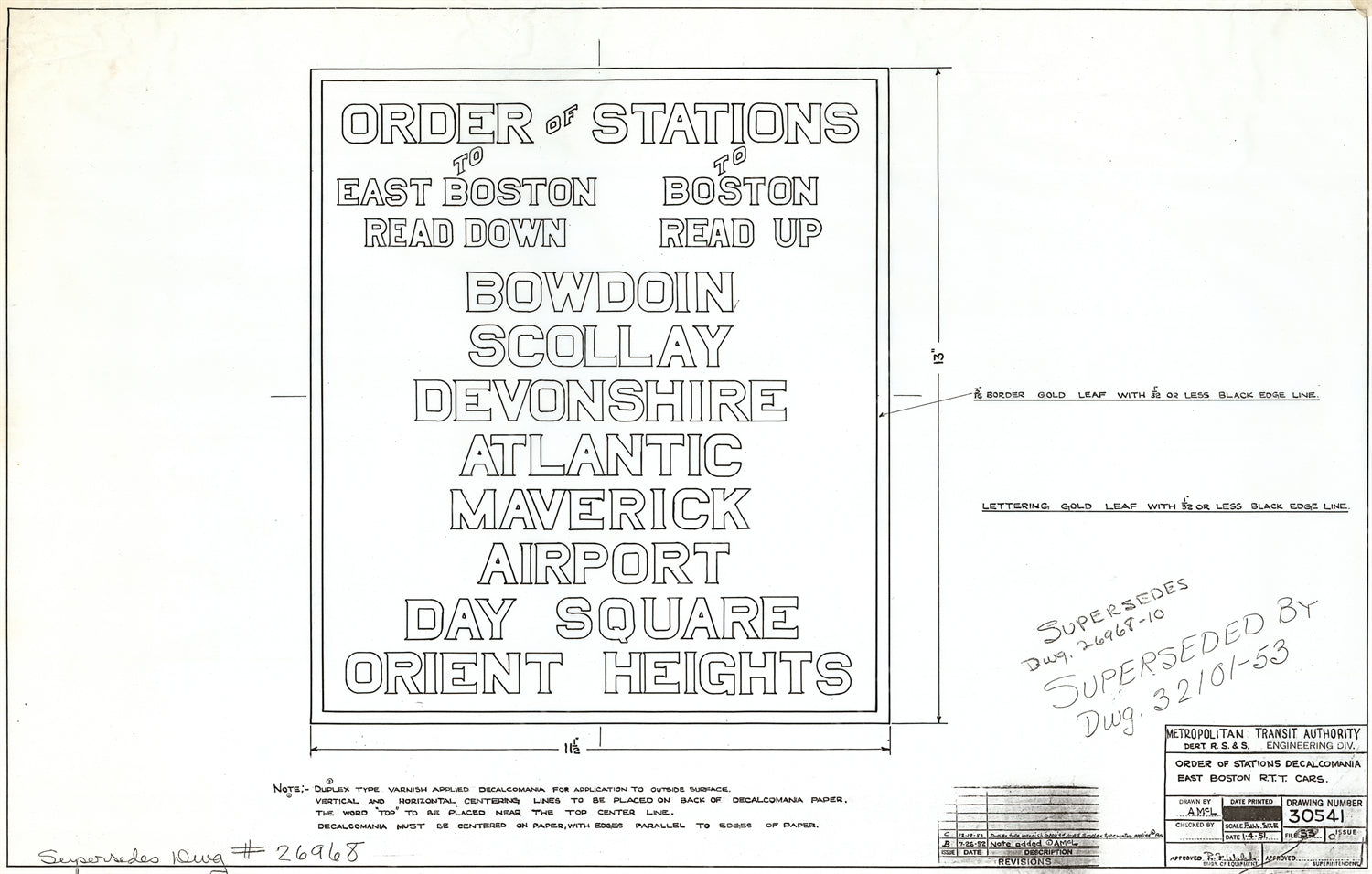

Figure 8.18 - Order of Stations Sign Fabrication Drawing, 1951
A sign installed by the MTA in East Boston Tunnel rapid transit cars coincided with the 1952 opening of service between Bowdoin and Orient Heights Stations.
