Vehicle Data Sheet 40002: MBTA Red Line 01600-Series Rapid Transit Car 1970
Date: October 5, 1970 (date of last revision to drawing)
Source Collection: WardMaps LLC
Boston in Transit - The Book
Figure 9.75 - 01600-Series Red Line Rapid Transit Car, 1970

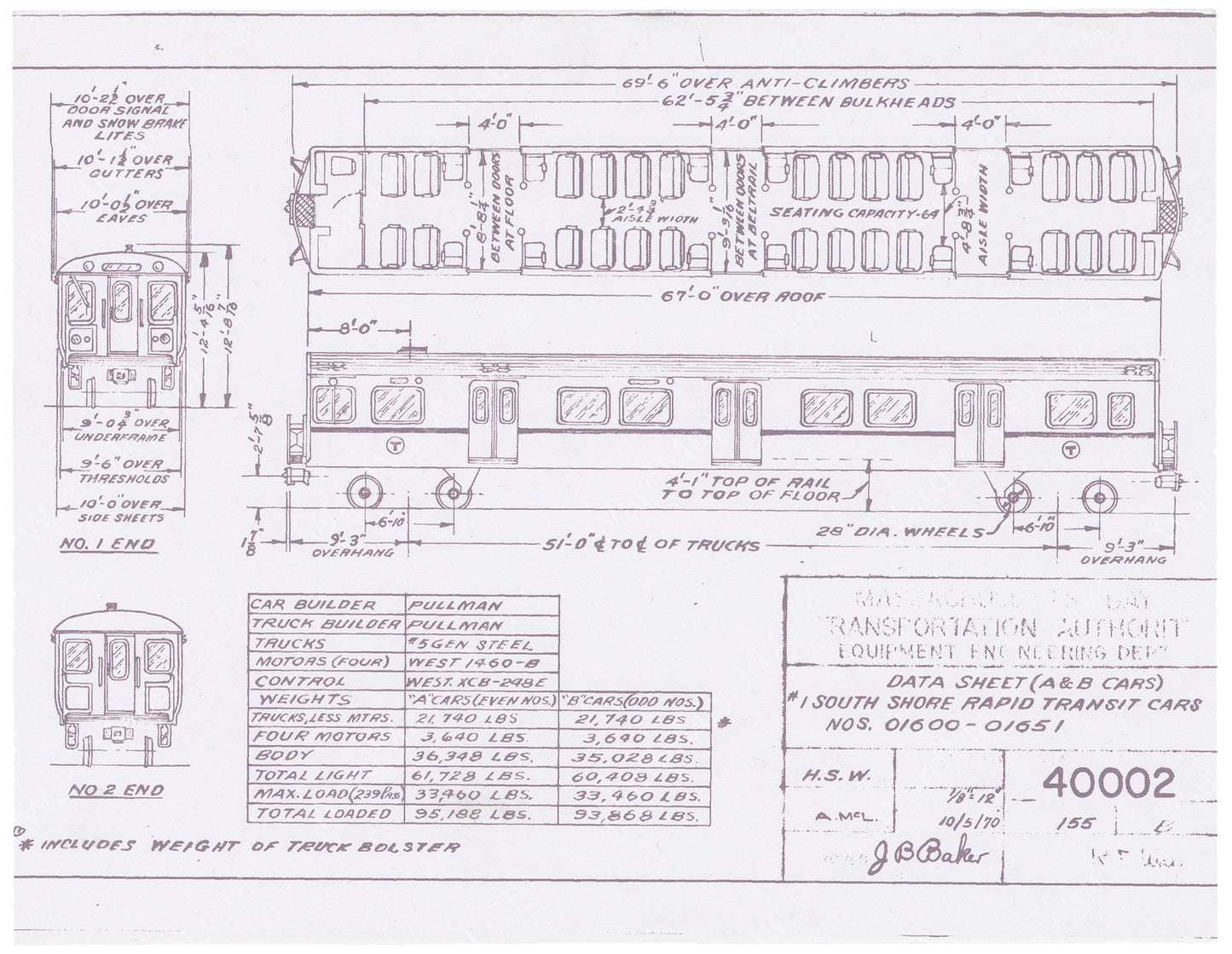

A data sheet articulates dimensions and specifications for Pullman-Standard-built 01600-series Red Line cars. Each 01600-series car featured one operator’s cab (left side of plan) and was designed to operate when mated to another 01600-series car.
