Dudley Street Terminal Elevated Level Plan June 1906
Date: June 1906
Publisher: Boston Elevated Railway Co.
Source Collection: WardMaps LLC
Boston in Transit - The Book

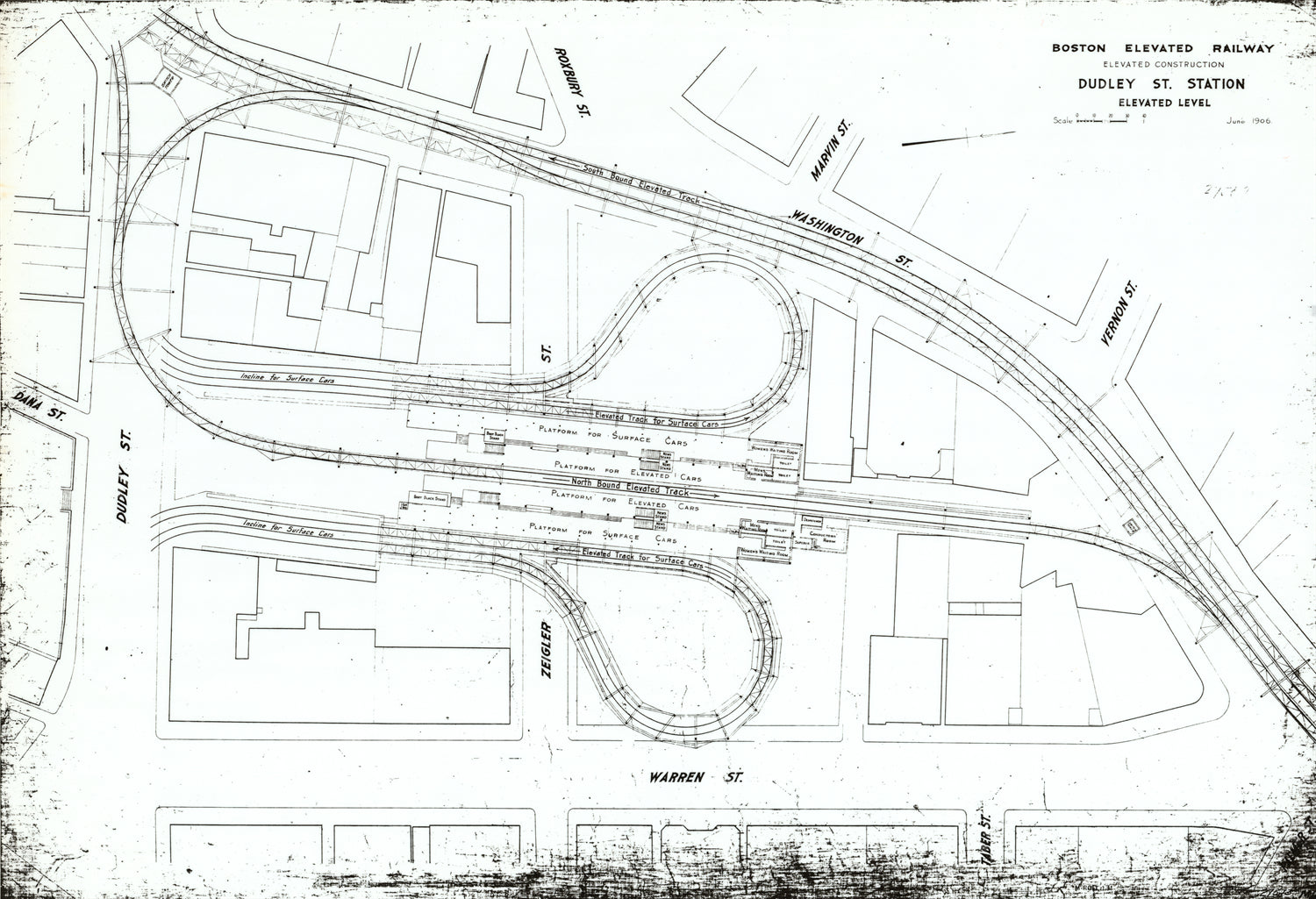

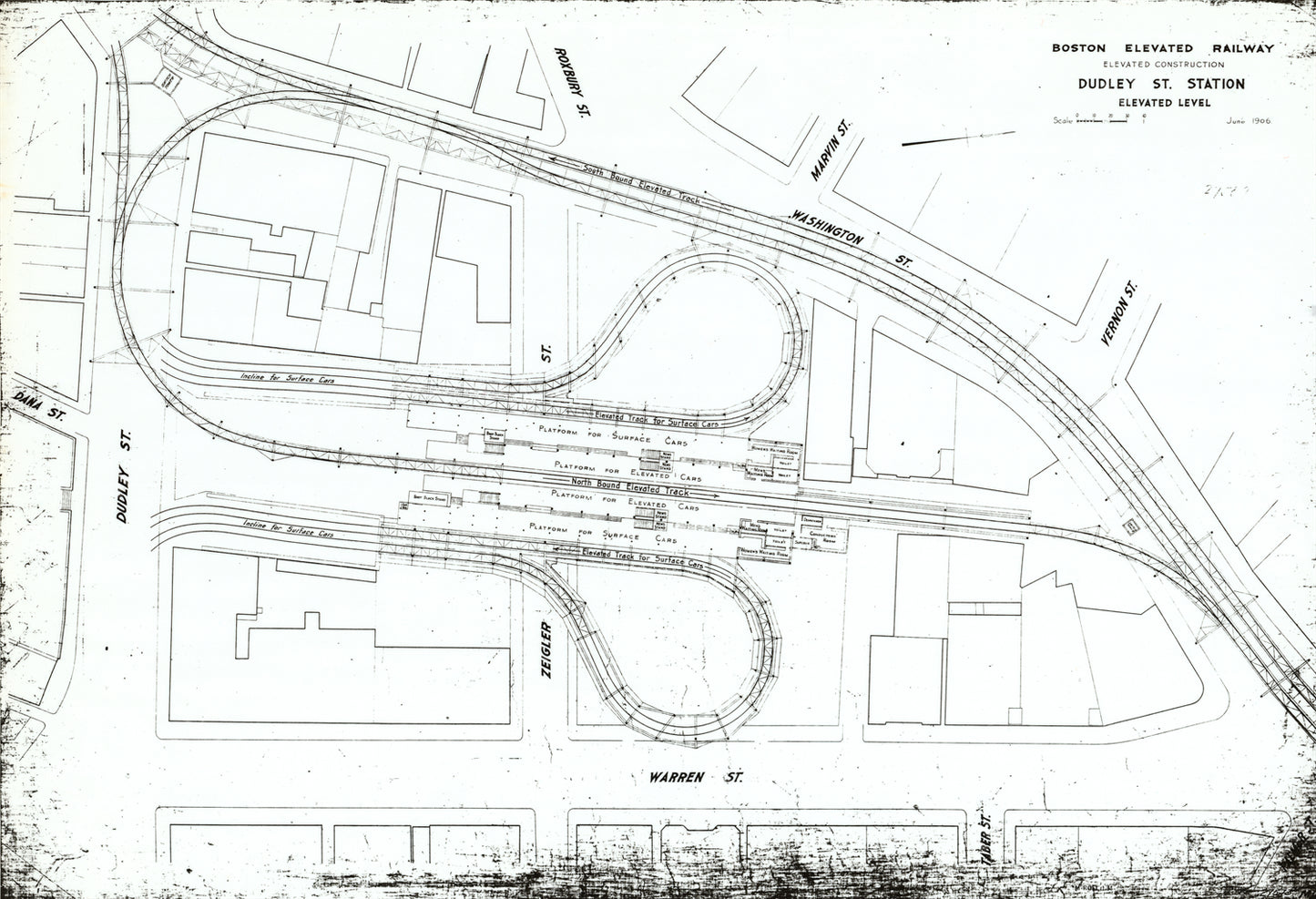

Figure 5.70 - Dudley Street Terminal Plan, June 1906
On a plan of Dudley Street Terminal, the double-track Washington Street Elevated runs from the bottom right to the top left. Southbound trains arriving from downtown followed the eastern track of the el. Above the intersection of Washington and Dudley Streets (top left), the el diverged into two single-track els. One ran to a rapid transit car service area at Guild Street. The other ran into the station. Trains headed northbound via the western track of the Washington Street Elevated. Ramps and loops, mirroring each across the terminal, brought streetcars between street level and the upper level transfer platforms.
