Designing Dudley Street Station, October 25, 1898

Designing Dudley Street Station, October 25, 1898

Date: October 25, 1898
Publisher: Boston Elevated Railway Co.
Source Collection:
 WardMaps LLC

Boston in Transit - The Book
Figure 5.68 - Designing Dudley Street, October 25, 1898

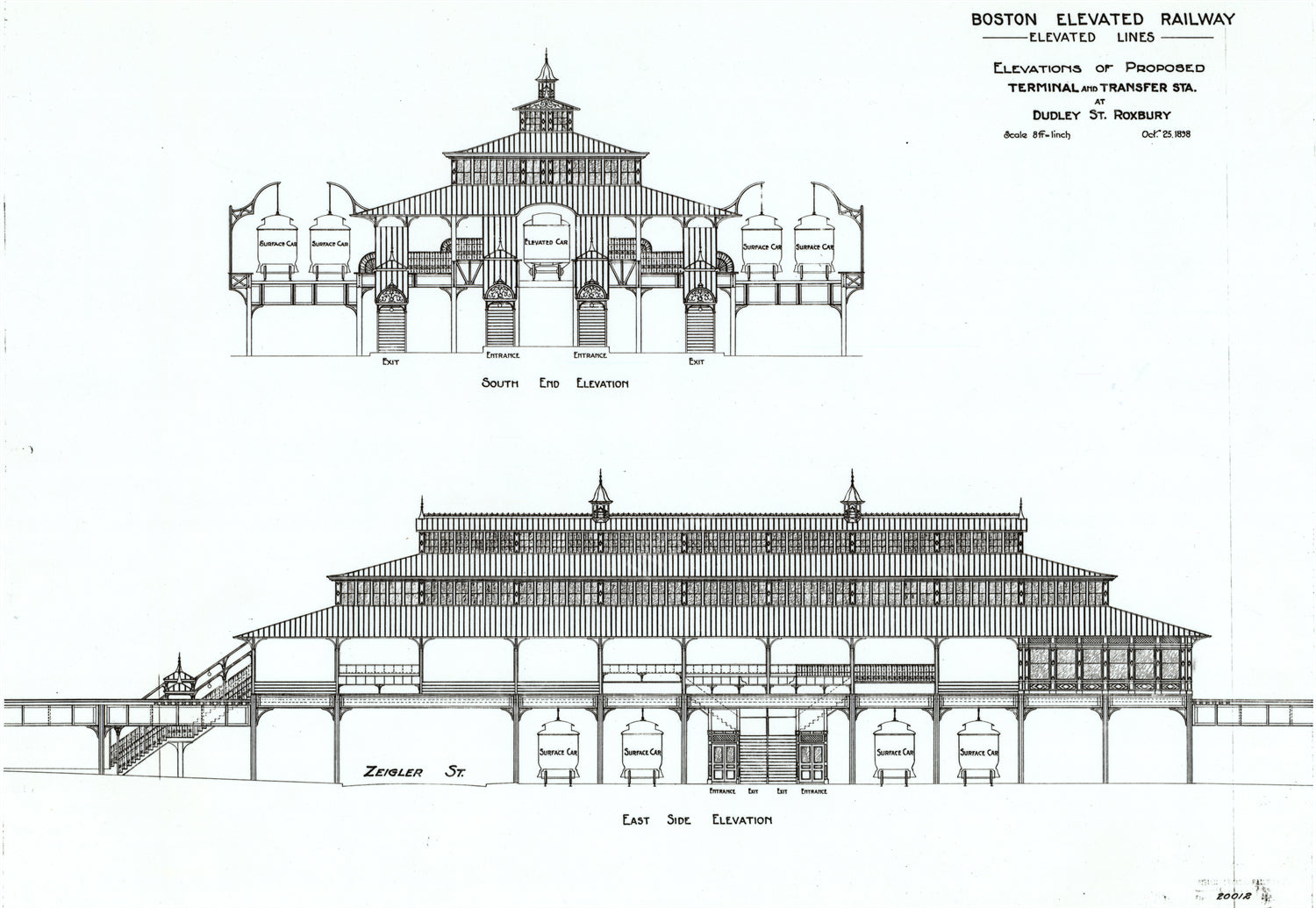

Architectural elevations represent a late design iteration for Dudley Street Terminal. A south elevation (top) shows streetcars flanking the station on elevated tracks and a rapid transit car occupying a single, central track. An east elevation (bottom) shows streetcars at ground-level running perpendicular to the rapid transit track, one story above. The terminal was essentially erected as designed above.
