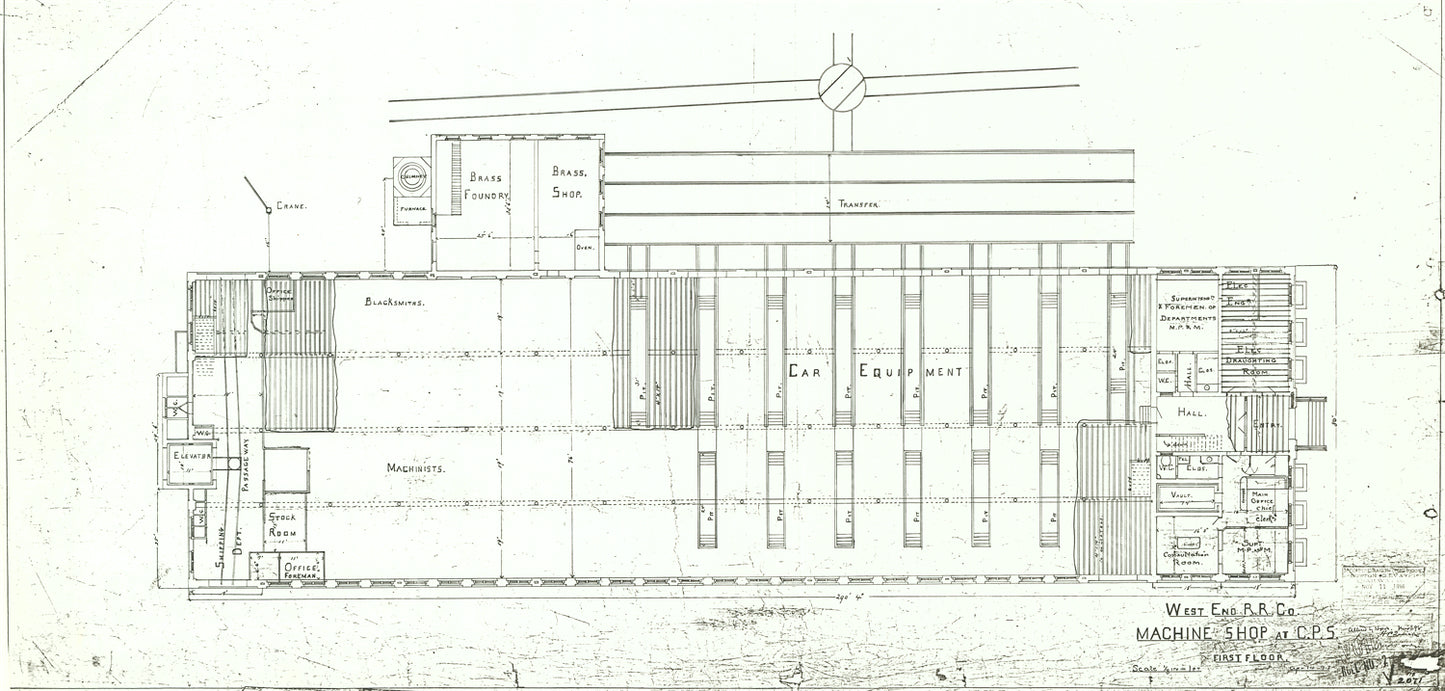

Central Power Station Machine Shop, South End, Boston, Massachusetts 1890s: First Floor Plan

Title: West End R.R. Co. Machine Shop at C.P.S. First Floor
Date Created: April 4, 1893 by West End Street Railway Co.
Date Updated: November 11, 1898 by Boston Elevated Railway Co.
Size: 23.3" wide x 11.1" high
Source Collection: Boston In Transit
Remarks: Scan was made from a black and white paper facsimile from (and most likely not printed at the same scale as) the original drawing. The paper facsimile was most likely produced in the mid-late twentieth century. "Authentic print" offered (as available) is the paper facsimile.
