Cambridge-Dorchester Type 5 Car (Drawing B) March 1961
Date: March 1961
Source Collection: WardMaps LLC
Boston in Transit - The Book

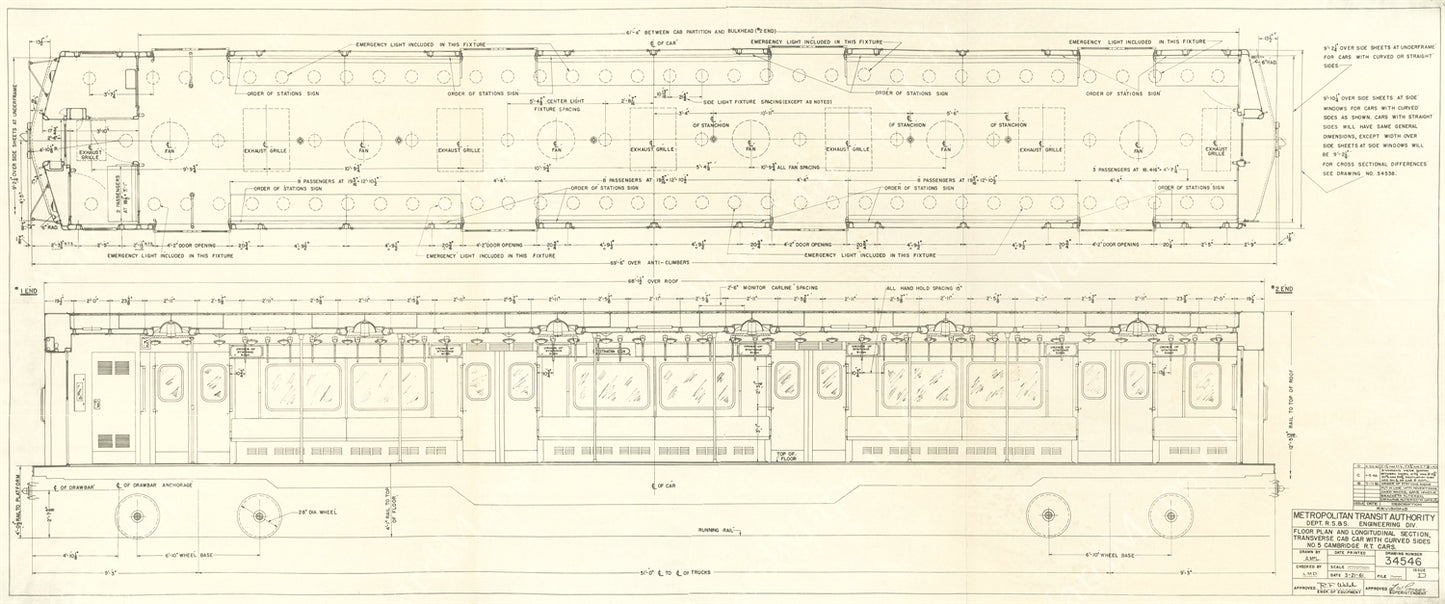

Figure 8.56 - Cambridge-Dorchester Type 5 Cars, March 1961
An exterior elevation (top), a plan showing ceiling elements dashed (middle), and a longitudinal section (bottom), articulate the dimensions, configurations, and major components of the MTA’s Cambridge-Dorchester Type 5 rapid transit cars. Ninety-two of the cars, also known as “Blue Birds,” were put into service in the early 1960s.
