Cambridge Bridge Commission Report 1909: New Bridge Plan and Elevation 1907
Publisher: Cambridge Bridge Commission
Size: 41" wide x 16" high
Source Collection: WardMaps LLC
Atlas: Cambridge (Longfellow) Bridge Commission Report 1909
Boston in Transit - The Book

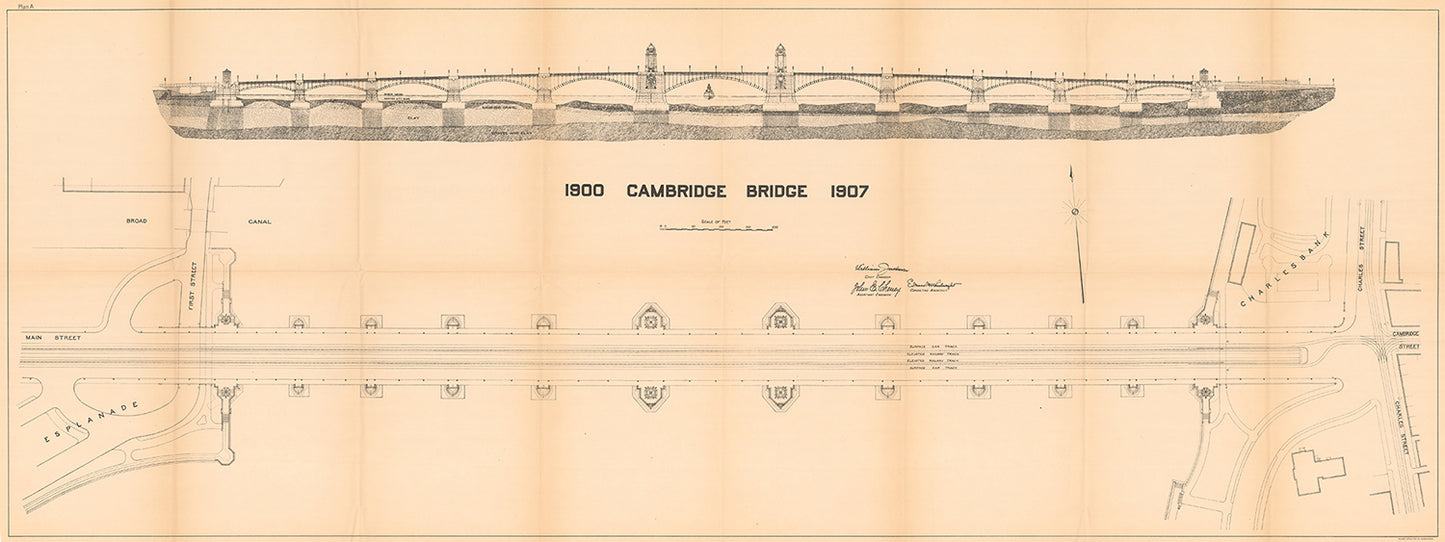

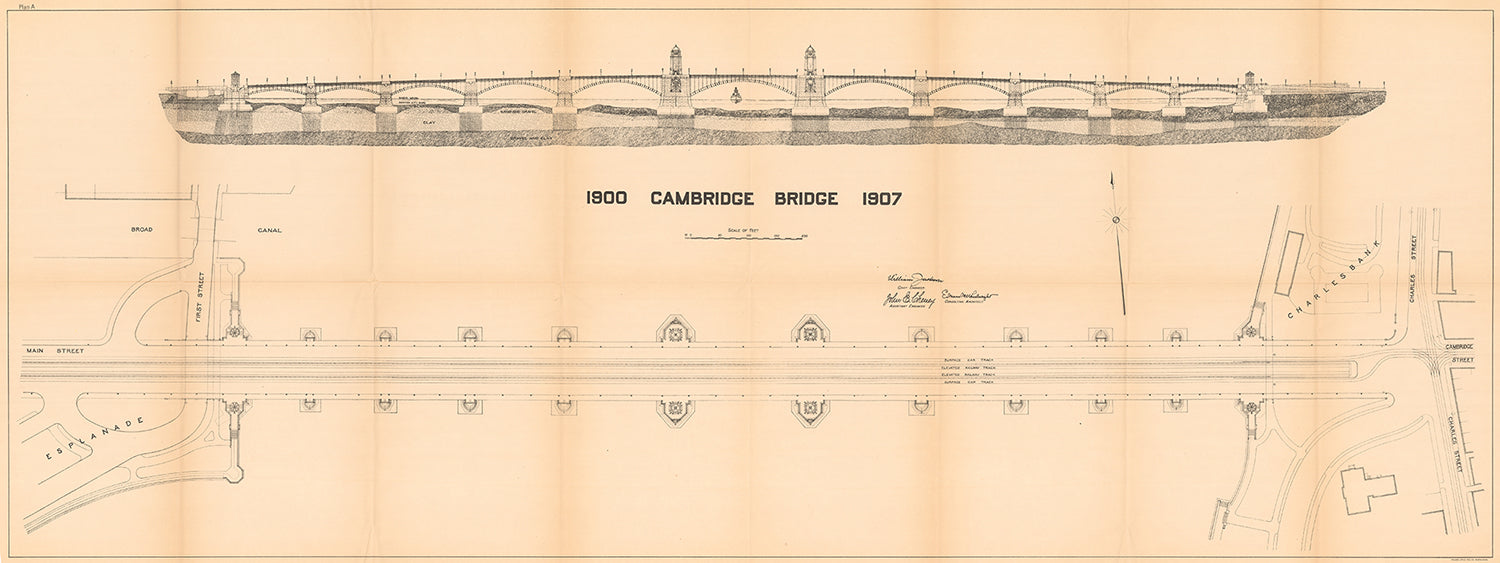

Figure 5.120 - Elevation (top) and Plan (bottom) of the New West Boston Bridge (now Longfellow Bridge), 1907
The Cambridge Bridge Commission published an elevation and plan of the 105-foot-wide bridge supporting sidewalks and two, double-lane roadways. Each roadway opened with tracks and trolley wire for electric streetcars. Separating the roadways and running the length of the bridge was a central reservation, reserved for the future installation of a double-track rapid transit line.
