Figure 5.143 - Fields Corner Station, 1927

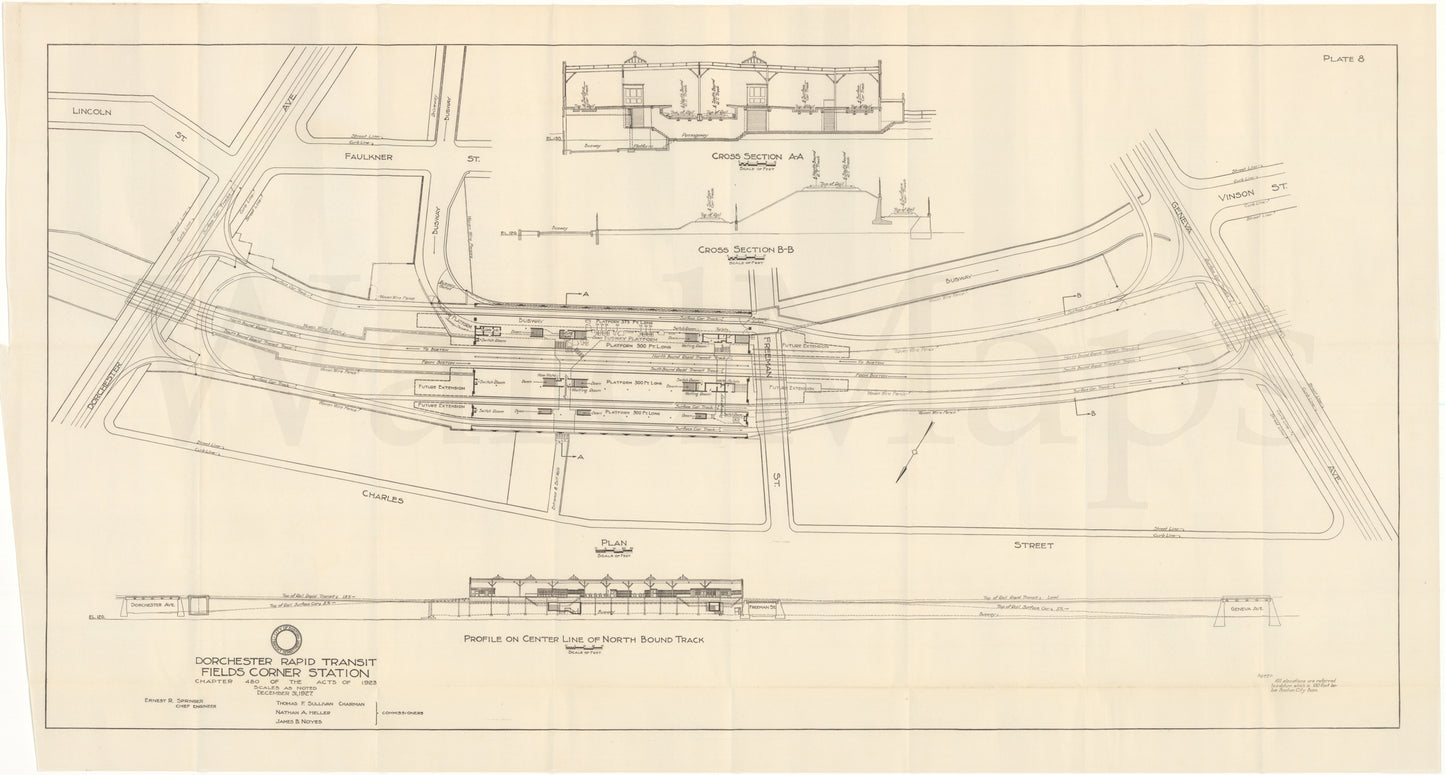

The double-track Cambridge-Dorchester rapid transit line passes through the middle of the upper level of Fields Corner Station. Alongside the southbound rapid transit track are two platforms and two streetcar tracks. Alongside the northbound rapid transit track are one platform and one streetcar track. The station’s busway (shown dashed) lies beneath the northbound platform. On the station’s lower level, passageways connect entrances with stairways leading up to the platforms. Cross-sections (top) reveal one of the passageways and the relative elevations of the station’s busway, streetcar tracks, and rapid transit tracks.
