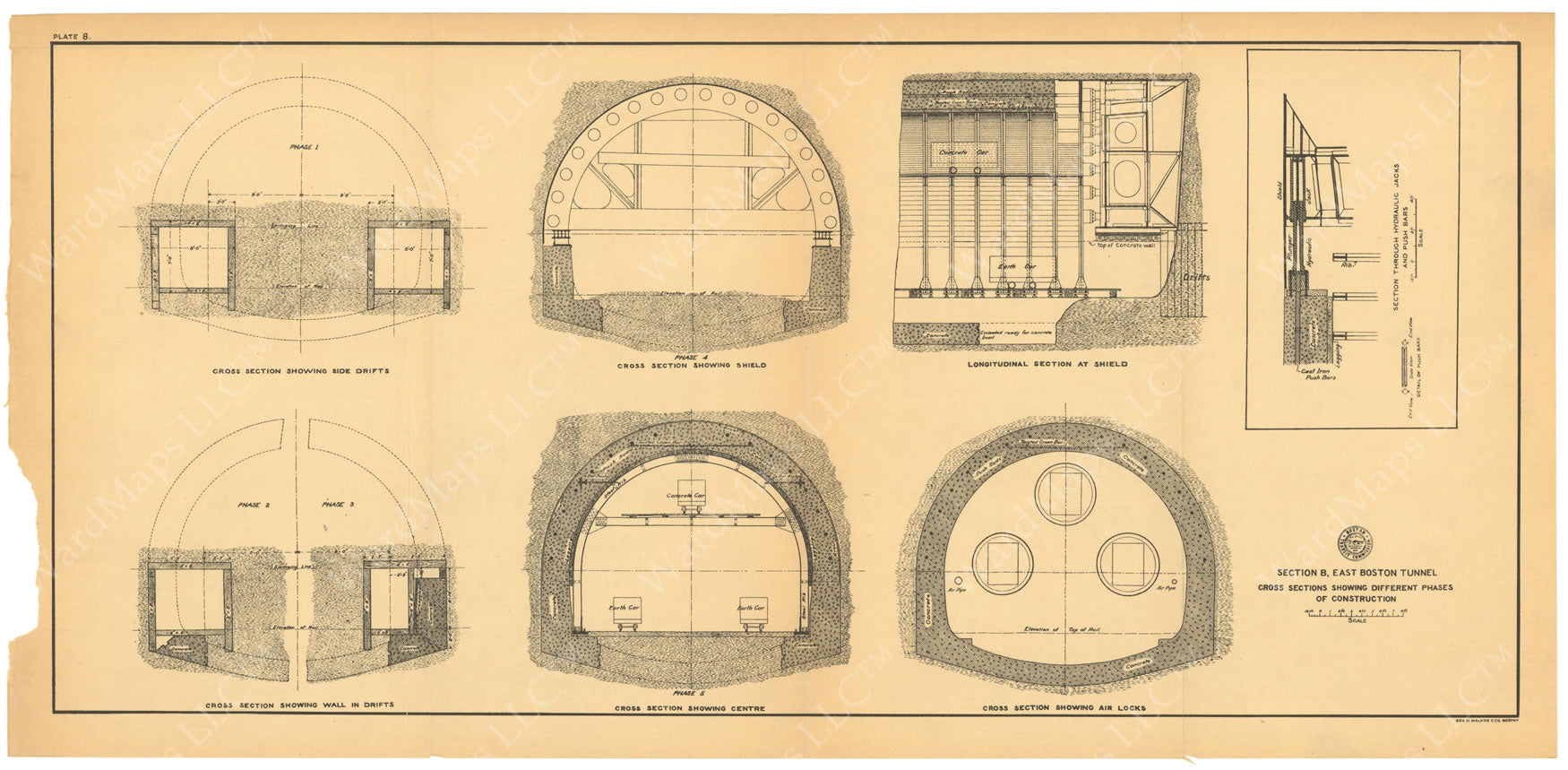

BTC Annual Report 07, 1901 Plate 08: East Boston Tunnel Construction, Section B
Publisher: Boston Transit Commission
Size: 18.25" wide x 9" high
Collection: Boston Transit Commission Annual Report 07, 1901
Source Collection: WardMaps LLC
Boston in Transit - The Book
Figure 5.12 - Constructing the East Boston Tunnel, 1901
A series of drawings articulates the sequence of construction of the portion of the East Boston Tunnel dug beneath Boston Harbor. First, small drift tunnels were dug. Then, tunnel sidewalls were constructed within each drift. Next, an iron roof shield was slid incrementally along rails running atop the side walls. Installation of the tunnel’s reinforced concrete lining was the final step.
